Urethane casting
All uploads are secure and confidential
Why choose Metal Market?
- Parts as fast as 10 days
- Ideal for complex geometries & custom textures
- No minimum order quantity
- Wide range of materials (ABS-like, PC-like, elastomers)
- Secondary processing available
Why urethane casting?
Get production-quality parts without the tooling investment of injection molding.
Production Quality at Low Volumes
Produce 10-200 units with production-level quality. Each silicone mold produces approximately 20 castings, making it ideal for bridge production and market testing.
Complex Elastomeric Parts
Ideal for prototyping elastomeric parts such as complex gaskets, seals, and overmolds on rigid parts. Materials range from 20 Shore A to 87 Shore D.
High Level of Detail
Achieve almost limitless complexity, including sharp internal corners unachievable with CNC machining, and designs without draft or uniform wall-thickness.
Urethane casting capabilities
From master pattern creation to finished parts, we handle the complete urethane casting process.
Fast Turnaround
Parts delivered as fast as 10 days
Custom Colors
Color matching and multi-color options
Surface Finishes
Matte, glossy, and textured options
Secondary Ops
Painting, overmolding, insert installation
Quality Assured
Material certifications & CoCs available
No MOQ
Order any quantity from 1 to 200+ parts

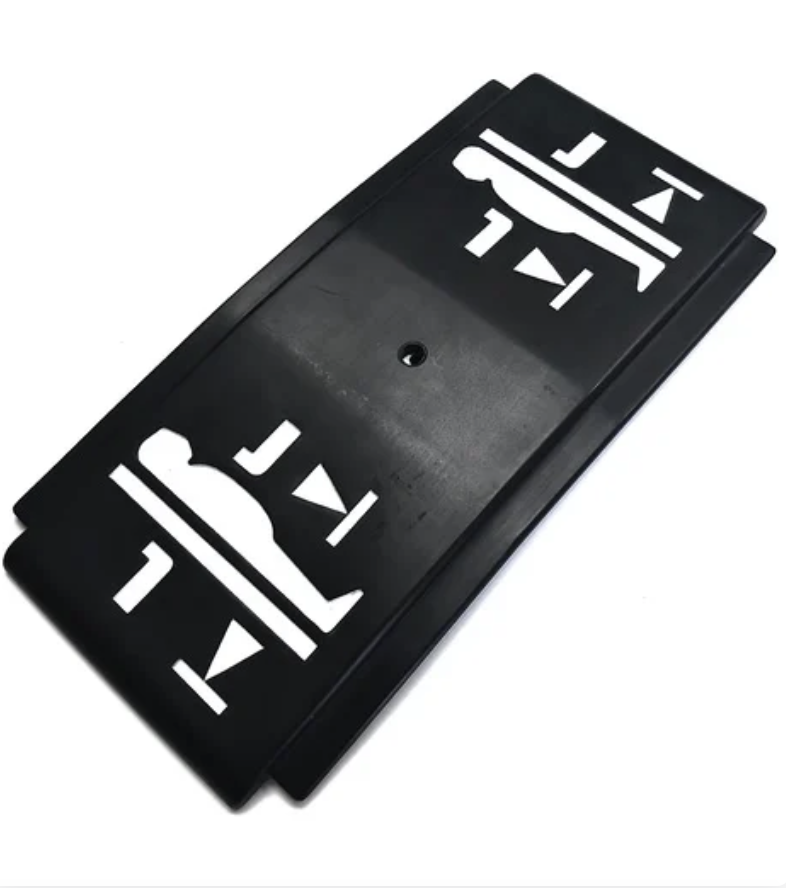

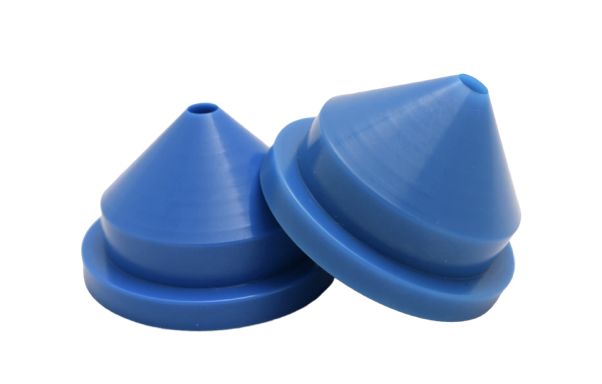

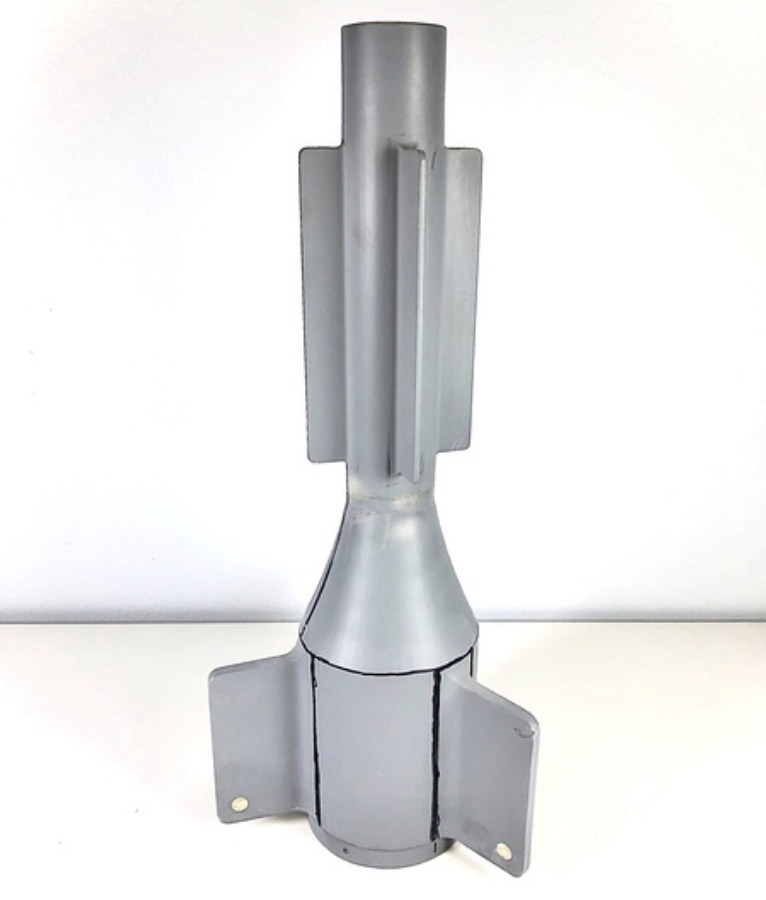

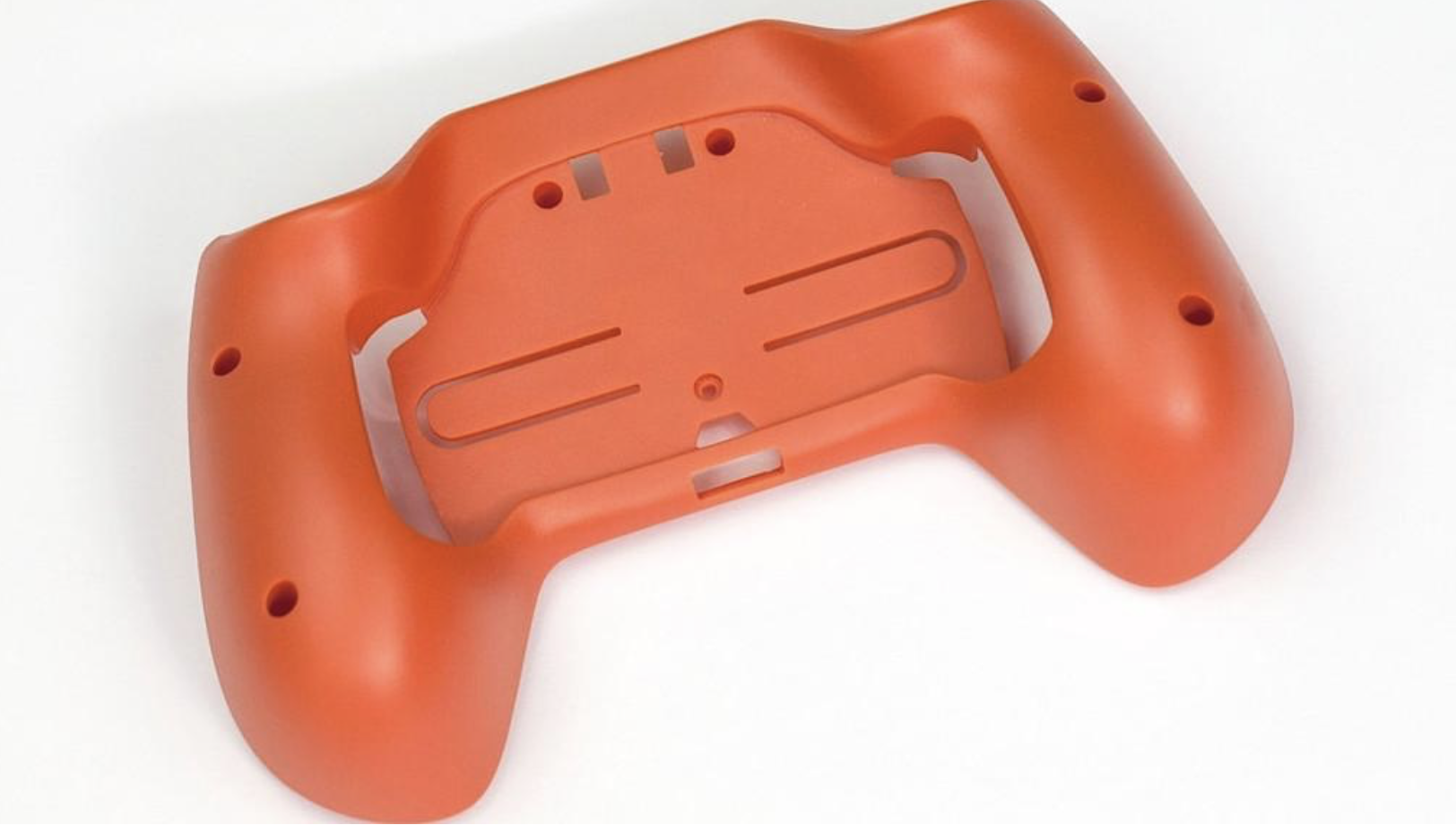

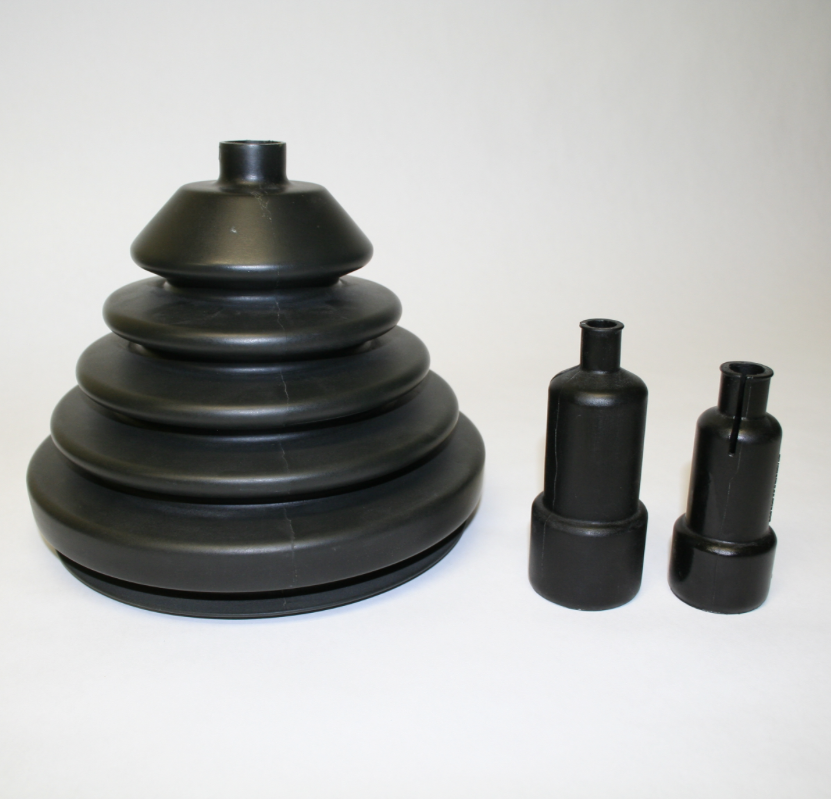

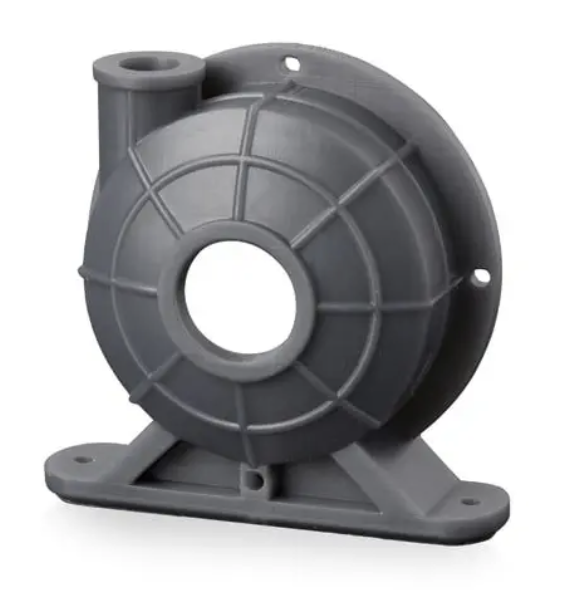

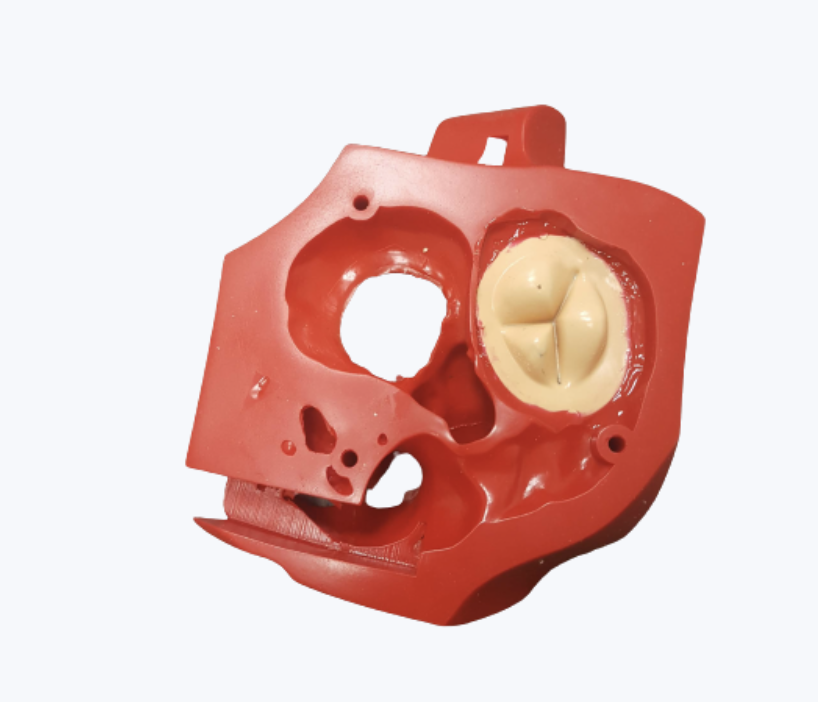

Gallery of urethane cast parts
Here's a selection of urethane cast prototypes and production parts we've produced for our customers.
Urethane casting materials
We offer materials that simulate a wide range of production plastics, from rigid ABS-like to flexible elastomers.
ABS-Like
Hardness: 75-85 Shore D
Tensile Strength: 42-73 MPa
Elongation: 16-21%
Impact Strength: 12 kJ/m²
Overseas Grade: Axson UP 8150
Domestic Grade: Rampf TP 4056
Colors: Natural, Yellow, Purple, Color Match
ABS-Like FR V0
Hardness: 78-85 Shore D
Tensile Strength: 41-74 MPa
Elongation: 15-24.5%
Impact Strength: 10 kJ/m²
Overseas Grade: Heicast 8263
Domestic Grade: PTM&W PT8952
Colors: Natural, Black, White, Gray, Red, Yellow, Blue, Green, Orange, Purple, Color Match
ABS-Like HT
Hardness: 75-86 Shore D
Tensile Strength: 59-72 MPa
Elongation: 45-54%
Impact Strength: 34-44 J/m
Overseas Grade: Axson UP 6160
Domestic Grade: Rampf TP 4007
Colors: Natural, Black, White, Gray, Red, Yellow, Blue, Green, Orange, Purple, Color Match
Acrylic-Like
Hardness: 75-85 Shore D
Tensile Strength: 17-70 MPa
Elongation: 45-24%
Impact Strength: 60-70 J/m
Overseas Grade: Axson UPX 5210
Domestic Grade: Rampf OC 5086
Colors: Color Match
Nylon-Like
Hardness: 75-87 Shore D
Tensile Strength: 60-75 MPa
Elongation: 45-34%
Impact Strength: 17 kJ/m²
Overseas Grade: PELNOX 2180
Domestic Grade: Rampf TP 4020
Colors: Natural, Black, White, Gray, Red, Yellow, Blue, Green, Orange, Purple, Color Match
Opaque Elastomer
Hardness: 20-90 Shore A
Tensile Strength: 45-309 MPa
Elongation: 200-640%
Impact Strength: N/A
Overseas Grade: Axson UPX 8400
Domestic Grade: Crosslink Triathane 3 Part System
Colors: Color Match
POM-Like
Hardness: 75-87 Shore D
Tensile Strength: 54-79 MPa
Elongation: 45-48%
Impact Strength: 13 kJ/m²
Overseas Grade: PELNOX XU 50
Domestic Grade: Rampf TP 4006
Colors: Natural, Black, White, Gray, Red, Yellow, Blue, Green, Orange, Purple, Color Match
PP-Like
Hardness: 60-83 Shore D
Tensile Strength: 25-35 MPa
Elongation: 50-155%
Impact Strength: 75-100 kJ/m²
Overseas Grade: Axson UP 5690
Domestic Grade: Rampf TP 4004
Colors: Natural, Color Match
Waterclear Elastomer
Hardness: 30-80 Shore A
Tensile Strength: 1.5-40 MPa
Elongation: 125-300%
Impact Strength: N/A
Overseas Grade: Heicast T0387
Domestic Grade: BJB WC Series
Colors: Gray, Color Match
Urethane casting finishing options
Choose from a variety of surface finishes to achieve the desired look and feel for your parts.
Matte
A smooth finish that typically doesn't reflect light. Sometimes referred to as eggshell.
Applications: Any durometer of plastic, smooth parts that don't require gloss or texture.
Texture: Smooth, not textured
Glossy
A shiny or reflective surface finish that's extremely smooth.
Applications: Parts needing a reflective or clear appearance, softer parts that need to seal.
Texture: Shiny and extremely smooth
Light Texture (MT11010)
A dull matte finish that has a sand-like appearance.
Applications: Hard plastic housings or cases requiring light texture for aesthetics or grip.
Texture: Lightly textured
Medium Texture (MT11020)
A more pronounced surface graining for items that require more texture.
Applications: Hard plastic housings requiring medium texture for aesthetics or added grip.
Texture: Medium texture
Heavy Texture (MT11030)
The most pronounced surface graining for items requiring the highest level of texture.
Applications: Hard plastic housings requiring heavy texture for aesthetics or heavy grip.
Texture: Heavy texture
Secondary operations
Enhance your urethane cast parts with our comprehensive secondary processing options.
Painting
Custom color matching and multi-color finishes
Overmolding
Combine rigid and flexible materials
Insert Installation
Metal inserts and threaded components
Pad Printing
Logos, text, and graphics application
Assembly
Multi-component assembly services
EMI Shielding
Electromagnetic interference protection
Our ordering process
Upload CAD file
Securely upload your part design to our online quote builder
Confirm specs
Configure your part specifications and select a lead time
Receive quote
Get an instant quote for your parts
Manufacturing
We select the best manufacturer and production begins
Quality control
We ensure parts are manufactured to our standards
Delivery
Your parts are delivered to your door
Industries we serve
Urethane casting is trusted across industries for prototyping and low-volume production.
Frequently asked questions
Our other manufacturing capabilities
CNC machining
Milling (3-, 4- & full 5-axis), turning and post-processing
- 50+ metals and plastics & 10 surface finishes
- Tolerances down to ±0.0008" (0.020 mm)
- Lead times from 5 business days
3D printing
FDM, SLS, MJF, SLA
- Dimensional accuracy from 0.2%
- 25+ plastics & 35+ colors
- Lead times from 1 business day
Injection molding
Prototypes and production tooling
- Wide range of part complexities and sizes
- 1 to 1M+ parts production capacity
- Lead times from 10 business days
Sheet metal fabrication
Laser cutting, bending, post-processing
- 6 metals & 9 surface finishes
- Tolerances down to ±0.004" (0.010 mm)
- Lead times from 5 business days
Compression molding
Rubber and composite parts
- 9 certified materials including silicone & EPDM
- Tolerances as low as +/- 0.02"
- Lead times from 10 business days

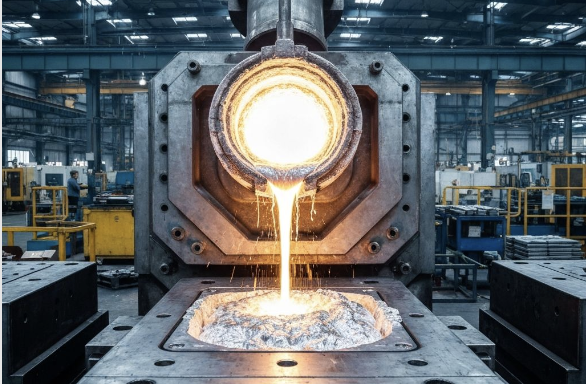

Die casting
High & low pressure casting
- Certified aluminum, zinc & magnesium alloys
- Tolerances as low as +/- 0.003"
- Samples as fast as 10-15 days

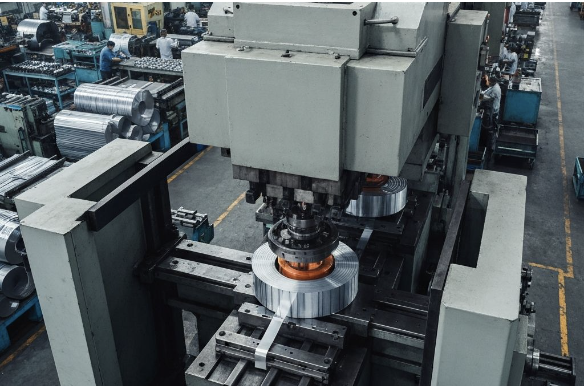

Metal stamping
